Solid stream jet nozzles

Solid-stream designs for localized impact, cutting, descaling and cleaning duties.

Document stateEngineering reviewSource CLIENT-002

Pre-release technical dataDo not use these values for procurement, installation or safety decisions until an approved Veylcore datasheet is issued.

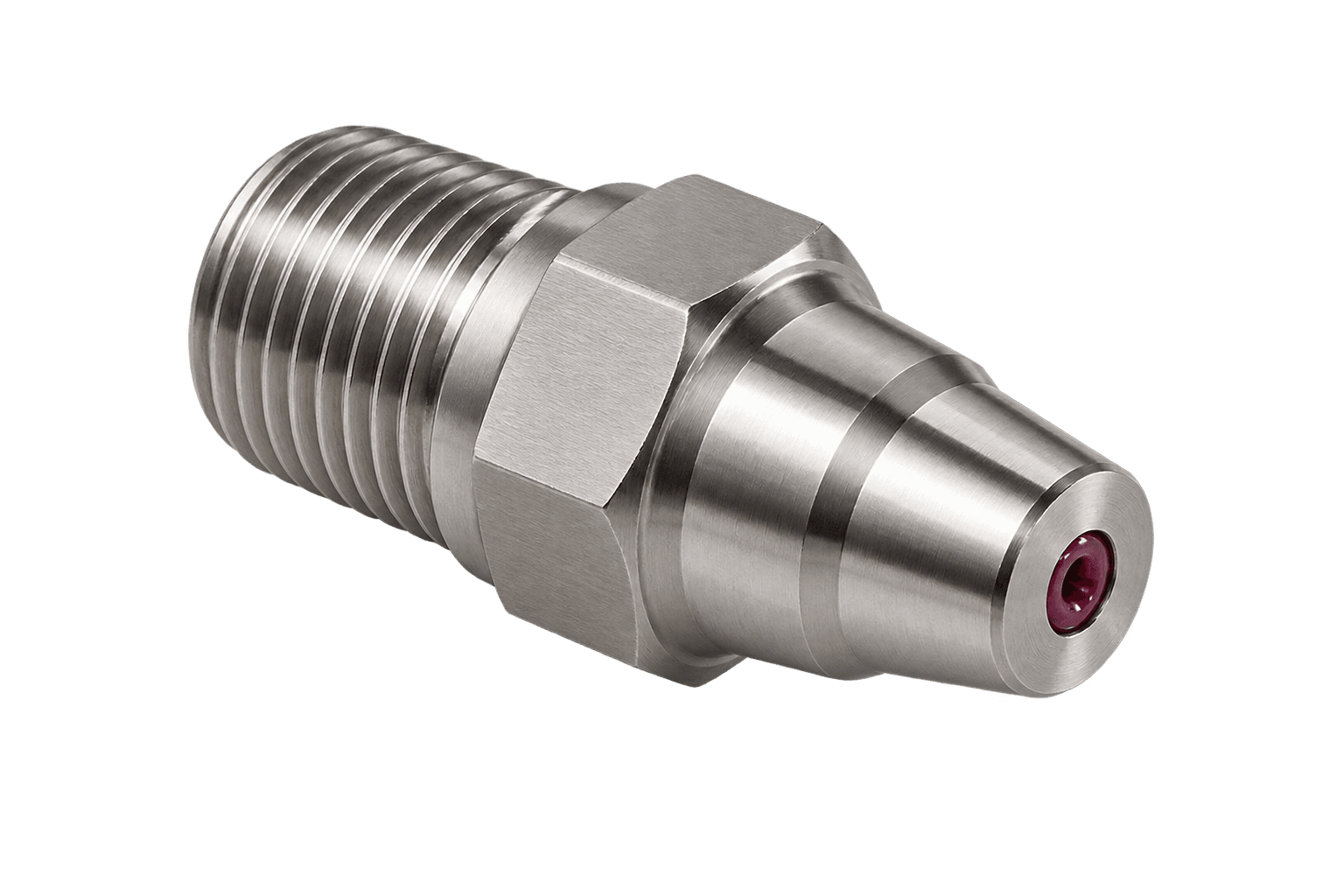

Concept product render for Veylcore Series VSS — Concept visualization · final production geometry may differ

Dimension-neutral concept drawing for Veylcore Series VSS — Drawing VSS-CONCEPT-R0 · NTS · Not for manufacture

Spray behavior

Selection basis

A concentrated liquid jet intended to maximize localized impact at the operating point.

Target applicationsTank washingJet cuttingDescalingWeb trimmingTrash-rack cleaning

Client-supplied master / revision 0

Series range

Model	Orifice	Pressure range	Impact at 5 bar	Connections
VSS-STD	0.8-6.4 mm	2-70 bar / 30-1000 psi	1.2-48.5 N	1/4, 3/8, 1/2 in NPT male

Construction

Materials

Ruby or sapphire inserts
Tungsten carbide
316L stainless steel

Operating envelope

Temperature

Client draft: up to 500 C. Insert retention, body material and pressure derating require configuration-specific validation.

Interfaces

Connections

Client draft: 1/4 in, 3/8 in and 1/2 in NPT male.

Release control

Open engineering checks

Impact figures need a declared measurement model and standoff distance.
Jet-cutting claims require application-specific safety and suitability review.
